There are a few satellites that the United States National Oceanic and Atmospheric Administration operates 3 satellites that anyone can use to receive atmospheric images. I’m very excited to see these images…

If I can successfully build an antenna…

I have been trying to make a v-dipole at 137 MHz, but I haven’t been able to actually get a clear signal from the satellite. I’ll be uploading my notes on the actual creation of the antenna once I can get a working one. If I can’t successfully get a good signal from the V-Dipole, I plan to go through and try making a couple of other forms of antennae.

Hopefully, in the coming days or weeks I’ll be able to upload some images I’ve pulled from satellites.

Additionally, I’ve got a weather station set up, I’m working on setting up an automatic upload of weather data from my location, but I have more work to do on that… and it doesn’t really belong in the radio section! (You should still expect to see a weather subsection here soon with some fun information about putting together a DIY weather station.)

Update: 7/8/2022

Holy shit, y’all

I identified the NOAA signal today, but was not able to get a quality recording that wxtoImg could process. I have the 137 MHz BPF designed, I plan on putting it together when my SMA connectors come in. I’m going to build it component to component, and encase it in an aluminum box to shield it. I also have an LNA on the way that should allow me to make it work.

Although, if I’m lucky, I might be able to find the signal and down a good audio sample before all that is done, and use those to really tune the signal in.

Update: 7/13/2022

I’ve got some good results lately, although nothing quite enough to pull an image from. I do have some audio signals and some screen caps. All of the images I get I’ll just throw on the gallery at the end of the page!

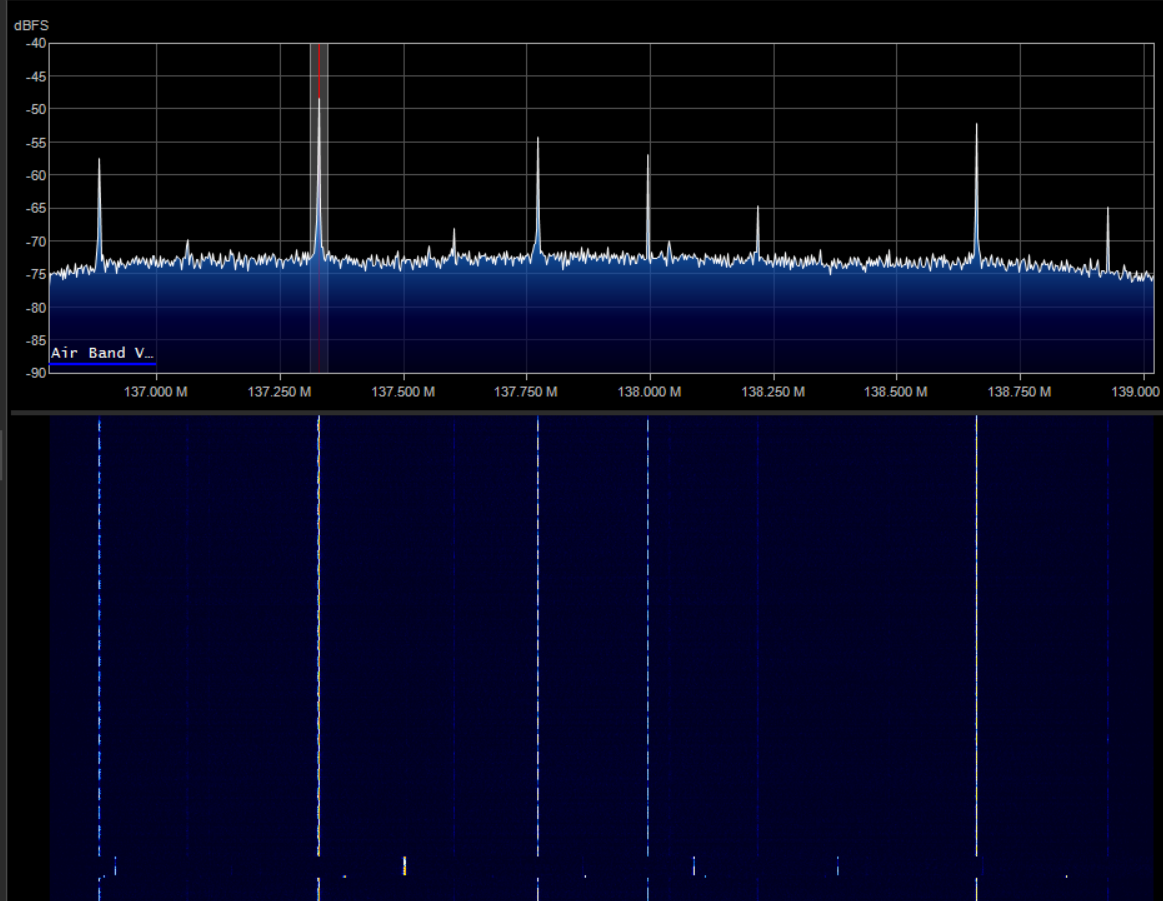

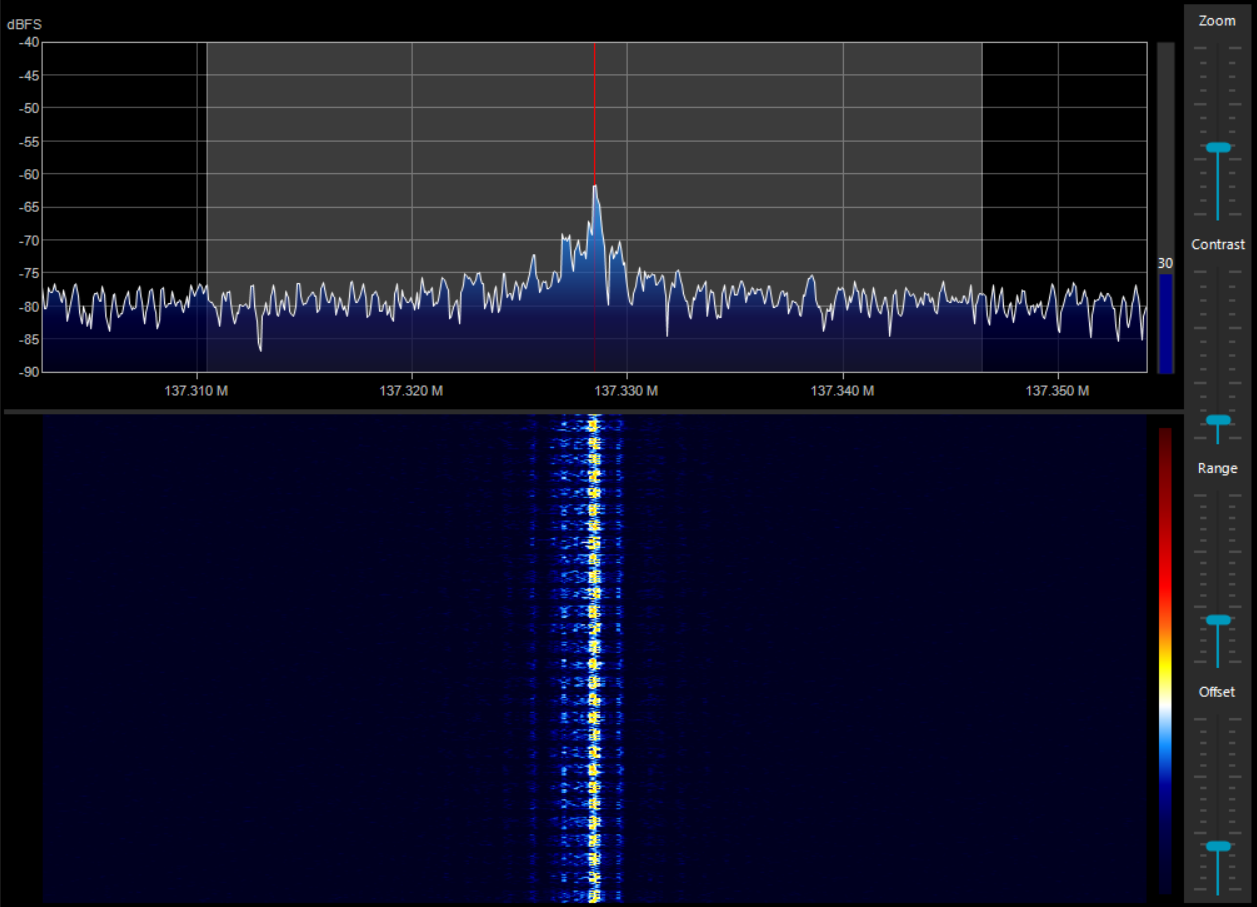

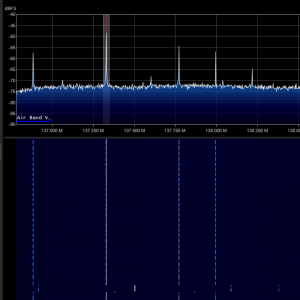

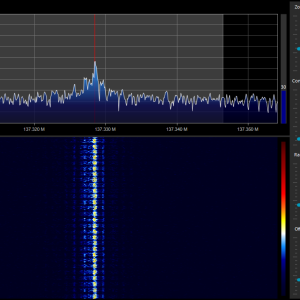

I did get some super weird interference on the 137 mHz band… I can’t seem to figure out what it is, but I’m thinking it’s probably interference from electronics in the house. I can’t wait to take this thing out with the RV and get some really clear signals.

I haven’t yet gotten a successful image… I’m working on a new antenna as of Aug 07 2022

73 K0NOS
